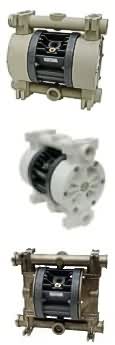

The Boxer 80 air diaphragm pumps feature simple and quick maintenance,
easily replaceable components, non-lubricated air feed and adjustable delivery and head.
In the Conduct version, their explosion-proof characteristics are certified to the
Atex 94/9/EC Machinery Directive.
Other technical advantages include: speed fine tuning while maintaining pressure high,
splittable manifolds, possibility of mounting the fittings in three different positions
on the intake or delivery side. Furthermore, these air diaphragm pumps can run dry without
any problem and are equipped with a patented internal exchanger coaxial to the shaft.
Construction and technical data
All the values shown are approximate and not binding
- Suction/delivery ports G 1"
- Air connection G 1/2"
- Max. dry suction lift* 4 m
- Max delivery 90 l/min
- Max head 70 m
- Max air feed pressure 7 bar
- Pass solids max. dia. 4 mm
- Net weight PP 5.5 kg
- PVDF 6 kg
- Aisi 316 12 kg
- Construction materials PP PVDF ECTFE Aisi 316
